| Model | ZL25-05 | ||||||||
| Working Voltage Range | DC：4.5-12V | ||||||||
| Rating Power | 4.5V：0.5-2W / 6V：1-3W / 12V：2-3W | ||||||||
| Static Water Head | 0.4-2M | ||||||||
| Static flow rate | 0.6-1.6Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | PH value：PH4-11、amphibious | ||||||||
| Max Noise | Continuous operation under normal working condition (water pump is 1m away from the tester)＜35dB | ||||||||
| Max Working Temperature | At room temperature Liquid medium temperature of aqueous solution≤70℃ | ||||||||
| Application | Water circulation system, desktop fountain, aquarium, foot bath, small medical equipment, etc | ||||||||

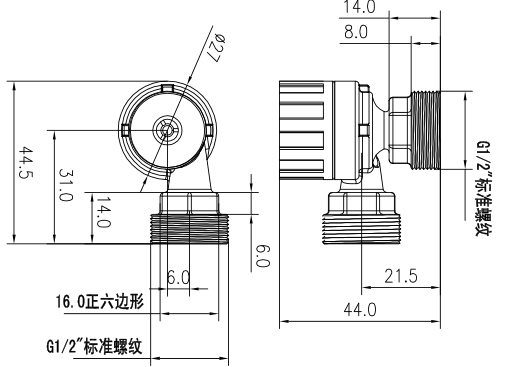

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length （mm） | Width （mm） | Height （mm） | OD （mm） | ID （mm） | OD （mm） | ID （mm） | |||
| 44 | 44.5 | 31 | IP68 | 1/2 Standard thread | φ5 | 1/2 Standard thread | φ5 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
