Model | ZL60-01 | ||||||||
Working Voltage Range | DC: 6-24V | ||||||||
Rating Power | 12V: 30-70W / 24V: 50W-150W | ||||||||

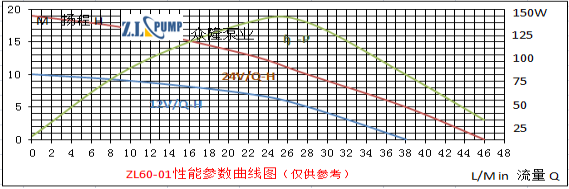

Static Water Head | 3—19 M | ||||||||
Static Flow Rate | 15--45 L/min | ||||||||
Lifespan | Continuous operation under normal surrounding ＞10000Hr | ||||||||
Working Environment | Liquid: From weak acid to weak base, workable both on land and in water (Submersible) | ||||||||
Max Noise | Under normal working status, 1M distance over test instrument＜50dB | ||||||||
Max Working Temperature | Under normal surroundings, fluid medium temperature ≤100℃ | ||||||||
Application | Car shower, pipe pressurization, solar water heater, small fountain/aquarium, etc. | ||||||||
Size | IP Grade | Inlet | Outlet | Remarks | |||||
Length (mm） | Width（mm） | Height（mm） | OD （mm） | ID （mm） | OD （mm） | ID （mm） | Inlet and outlet with twistlock | ||
170 | 76 | 76 | IP68 | M33.2 | φ25 | M33.2 | φ25 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
