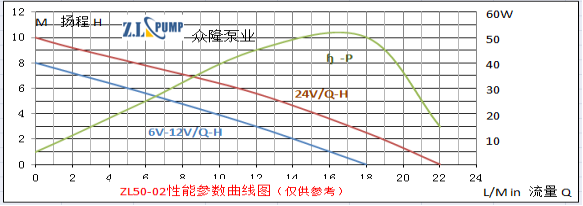

Model | ZL50-02 | ||||||||
Working Voltage Range | DC: 6V-24V | ||||||||
Rating Power | 6V: 0-40W / 12V: 0-40W / 24V: 0-50W | ||||||||
Static Water Head | 0-10 M | ||||||||
Static Flow Rate | 0-22L/min | ||||||||
Lifespan | Continuous operation≤24hrs, under normal working surrounding >20000hrs | ||||||||
Working Environment | Liquid: From weak acid to weak base, workable both on land and in water (Submersible) | ||||||||
Max Noise | Under normal working status, 1M distance over test instrument <45dB | ||||||||
Max Working Temperature | Under normal surroundings, fluid medium temperature≤70℃ | ||||||||
Application | Car shower, Pipe pressurization, solar water heater, small fountain/aquarium, etc. | ||||||||
Size | IP Grade | Inlet | Outlet | Remarks | |||||
Length（mm） | Width（mm） | Height（mm） | OD（mm） | ID（mm） | OD（mm） | ID（mm） | Inlet and outlet have twistlock | ||
84 | 68 | 100 | IP68 | φ20 | φ12.4 | φ20 | φ6 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
