| Model | ZL38-13 | ||||||||
| Working Voltage Range | DC：6-24V （If solar photovoltaic panel is used for power supply, parameters shall be provided: rated voltage, open circuit voltage, short circuit current） | ||||||||
| Rating Power | 6V：2-12W / 12V：3-18W / 24V：5-25W | ||||||||
| Static Water Head | 1-6M | ||||||||
| Static flow rate | 5-14Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | Applicable liquid pH value: weak acid, neutral, weak base. Water and land use | ||||||||
| Max Noise | Under normal working condition, the water pump is 1m away from the tester ＜40Decibel | ||||||||
| Max Working Temperature | Normal start delay 5-20 seconds；Under normal temperature environment, the temperature of the aqueous medium≤70℃ | ||||||||
| Application | It can be equipped with solar panel, pipeline pressurization, hot water shower, aquarium, fountain, etc | ||||||||

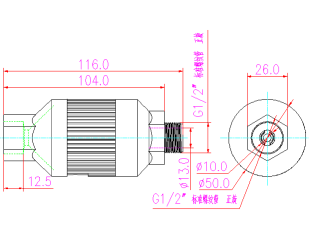

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length (mm) | Width (mm) | Height (mm) | OD (inch) | ID (mm) | OD (inch) | ID (mm) | The inlet and outlet threads are positive rotation Standard threaded pipe | ||
| 50 | 50 | 116 | IP68 | G1/2″Standard threaded pipe | φ13 | G1/2〞Standard threaded pipe | φ10 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
